Frigidaire Fffh20f2qwc Troubleshooting starts with simple checks for power, temp, and ice flow.
I have worked with dozens of Frigidaire units and spent years fixing common faults. This guide on Frigidaire Fffh20f2qwc Troubleshooting will walk you through clear steps, easy tests, and smart fixes. Read on to save time, avoid service calls, and get your fridge working reliably.
Overview: What to Expect with Frigidaire Fffh20f2qwc Troubleshooting
The Frigidaire Fffh20f2qwc is a popular freezer-on-top model. Like any appliance, it can show a few common problems over time. Knowing how to approach Frigidaire Fffh20f2qwc Troubleshooting makes repair faster and cheaper.
Common issues include:
- Not cooling enough
- Excess frost or ice
- Water leaks
- Strange noises
- Ice maker or dispenser faults
This overview sets the scene. Later sections give step-by-step checks and fixes for each issue. My tips come from hands-on repairs and reading repair manuals. You will get clear actions to try before calling a technician.
Step-by-Step Troubleshooting Checklist
Follow this checklist to tackle the most common faults with Frigidaire Fffh20f2qwc Troubleshooting. Work top to bottom and test after each fix.
Check power and controls
- Ensure the fridge is plugged in and the outlet works. Try another device in the outlet.
- Verify the control settings. Set refrigerator to 37–40°F and freezer to 0–5°F.
- If the panel is blank, try a different outlet or check the home circuit breaker.
Test airflow and cooling
- Clear vents inside the fridge and freezer. Blocked vents reduce cooling.
- Check the condenser coils. Dusty coils cause poor cooling. Clean coils with a brush or vacuum.
- Listen for the evaporator fan in the freezer. If it is silent with the compressor on, the fan may be faulty.
Handle frost and ice buildup
- Excess frost can block airflow. Defrost manually by powering off and leaving doors open.

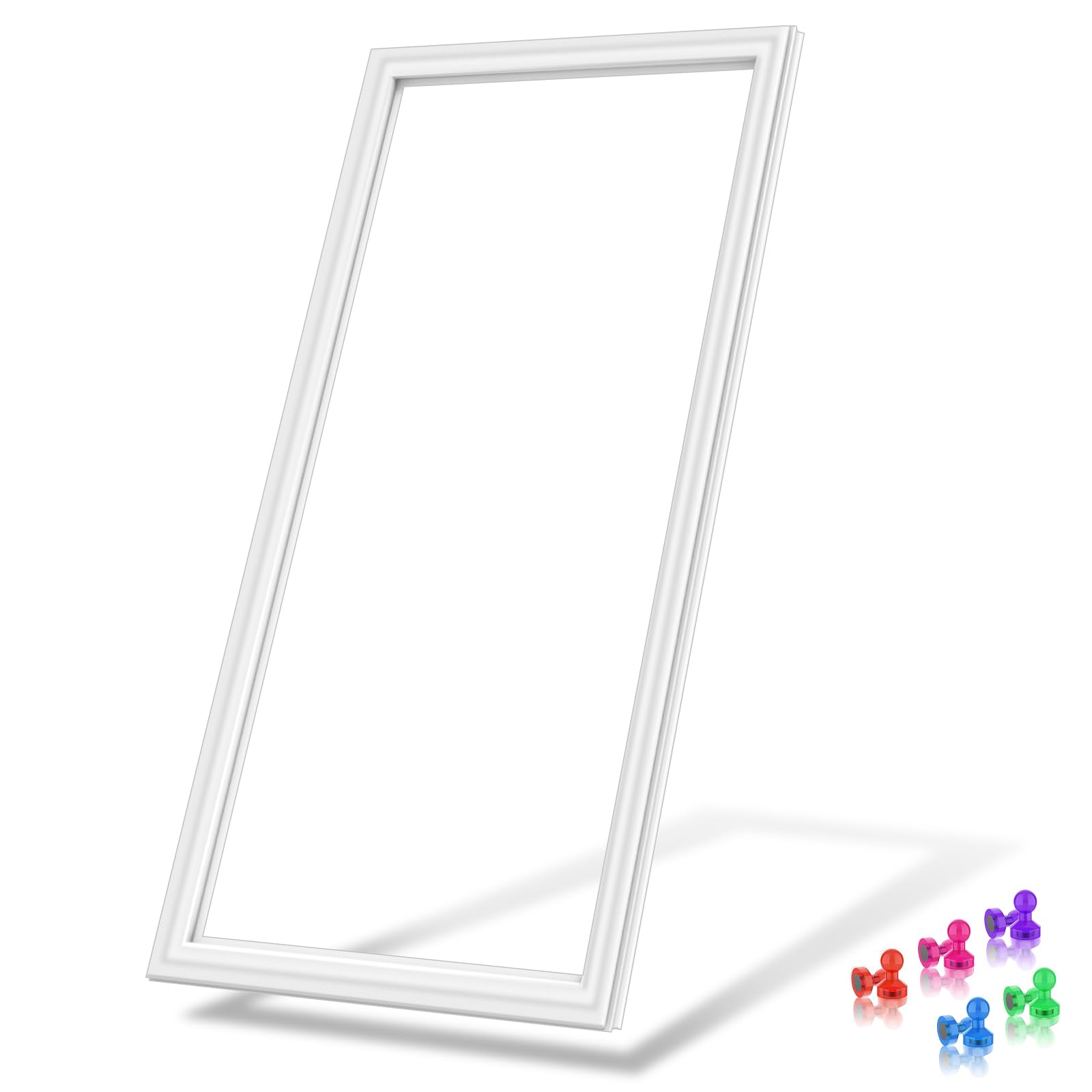

- Inspect the door gasket. A torn or dirty gasket lets warm air in and causes frost.
- Check the defrost heater and timer if frost returns quickly.
Stop leaks and water issues
- If water pools, test the drain tube and pan. Clear clogged drains with warm water.
- Inspect water supply lines to the ice maker or dispenser. Tighten loose fittings.
- Replace the water filter if the ice maker is slow or tastes odd.
Fix dispenser and ice maker problems
- Make sure the ice maker's power arm is down. If it’s raised, ice production stops.
- Test the water inlet valve for continuity. A faulty valve stops water flow to the ice maker.
- Clean the ice bucket and maker to remove jams.
Address strange noises
- Rattling often comes from loose components or items on top of the fridge.
- Humming is usually the compressor. Loud clicking may signal a relay issue.
- A squeal from the evaporator fan means the fan motor could be failing.
Reset and basic electronics checks
- Try a power reset: unplug for 5 minutes and plug back in. This can clear electronic glitches.
- If the control panel shows error codes, note them for further diagnosis.
These steps cover most DIY repairs in Frigidaire Fffh20f2qwc Troubleshooting. If a fix is unclear, move carefully or call a pro.
Tools and Safety Tips for Frigidaire Fffh20f2qwc Troubleshooting
Use the right tools. Safety matters when working with appliances.
Recommended tools
- Multimeter for voltage and continuity checks
- Soft brush and vacuum for coil cleaning
- Towel and small bucket for drains and leaks
- Screwdrivers and nut drivers for panels
- Needle-nose pliers for small fittings
Safety tips
- Unplug the fridge before any internal work.
- Turn off the water supply before touching water lines.
- Wear gloves and eye protection when needed.
- Avoid working on sealed system parts like refrigerant lines.
- If you see burnt wires or a burned smell, stop and call a technician.
Using these tools will make Frigidaire Fffh20f2qwc Troubleshooting safer and more effective.
Diagnostics and Error Codes for Frigidaire Fffh20f2qwc Troubleshooting
Error codes help pinpoint issues quickly. The panel may show codes or blink lights. Note any patterns.
Common diagnostic tips
- If the compressor runs but cooling is poor, check coils, fans, and airflow.
- If the compressor does not run, test voltage at the compressor and check the start relay.
- If the evaporator fan is noisy or not running, remove the back panel in the freezer to test it.
- For persistent frost, test the defrost heater and the defrost thermostat for continuity.
Reset procedures
- Hard reset: unplug for 5 minutes. This clears many control board glitches.
- Ice maker reset: locate the ice maker module and follow the manual reset steps, often involving pressing a test button or toggling the arm.
- Control panel reset: some models have a sequence of button presses to calibrate sensors. Check your manual.
When codes appear and you cannot clear them, record the code. That code speeds up professional diagnosis and repair. These steps help you with basic Frigidaire Fffh20f2qwc Troubleshooting.
When to Call a Technician
Some problems need a pro. Know the signs that mean you should stop and call a service technician for Frigidaire Fffh20f2qwc Troubleshooting.
Call a technician if:
- You smell burning or see melted wiring.
- The compressor is hot and not running.
- You suspect a sealed system leak or refrigerant issue.
- You lack tools or confidence for electrical testing.
- Unit is under warranty—unauthorized repair may void it.
A technician can test sealed components, run advanced diagnostics, and replace parts safely. Getting professional help early can prevent bigger damage and higher costs.
Personal Experience: Real Fixes and Lessons Learned
I once fixed a Fffh20f2qwc that leaked water onto the floor. The owner thought the fridge was broken. I found a small ice clump clogging the drain. A quick defrost and coil clean solved it.
Lessons I learned
- Always check simple things first: gasket, vents, and coils.
- Tell clients to keep the fridge level. A tilted fridge can misroute water.
- Regular coil cleaning avoids many cooling problems.
My hands-on work with Frigidaire Fffh20f2qwc Troubleshooting taught me the value of patience. Take small steps. Test after each change. That method saves time and money.
People Also Ask
Why is my Frigidaire Fffh20f2qwc not cooling?
Check power, vents, and condenser coils first. Dirty coils or blocked vents are common causes.
How do I defrost my Frigidaire Fffh20f2qwc?
Unplug the fridge, open doors, and allow ice to melt. Use towels to catch water and clear the drain when done.
Can I replace the door gasket myself on a Frigidaire Fffh20f2qwc?
Yes, gasket replacement is often a DIY task. Clean the groove, fit the new gasket, and ensure a tight seal.
Frequently Asked Questions of Frigidaire Fffh20f2qwc Troubleshooting
How do I reset my Frigidaire Fffh20f2qwc?
Unplug the unit for five minutes, then plug it back in. This resets the control board and clears many minor errors.
Why is there frost in the freezer section?
Frost forms from warm, moist air entering the freezer. Check the door seal and limit how long you keep the door open.
My ice maker stopped making ice. What should I check first?
Ensure the ice maker is turned on, the arm is down, and the water supply is connected. Replace the water filter if needed.
What causes a loud humming noise in my Frigidaire Fffh20f2qwc?
Loud humming can be normal from the compressor, but it may indicate coil or fan issues. Clean coils and check fan motors.
How often should I clean the condenser coils?
Clean coils every 6–12 months. More often if you have pets or a dusty environment.
Can I fix refrigerant leaks during Frigidaire Fffh20f2qwc Troubleshooting?
No. Refrigerant work must be done by a licensed technician. Call pro service for sealed system leaks.
Conclusion
You now have a clear, practical roadmap for Frigidaire Fffh20f2qwc Troubleshooting. Start with easy checks: power, vents, and coils. Move on to targeted tests for fans, defrost parts, and water lines. If a fix feels risky, call a qualified technician to avoid harm and extra cost.
Try these steps on your unit this week. Note what you tested and the results. Share your findings with a technician if you need help. If this guide helped, leave a comment or subscribe for more appliance repair tips.
