Most JLG battery charger issues stem from bad connections, weak batteries, or faulty chargers.
I have worked with lifts and chargers for years. I wrote this guide to help you fix Jlg Battery Charger Troubleshooting fast. I will show clear steps, simple tests, and safety checks. You will learn how to find the problem and when to call a pro.
What is a JLG battery charger and how it works
A Jlg Battery Charger Troubleshooting guide starts with basics. A charger converts AC wall power into DC that charges lift batteries. Chargers have fuses, indicators, and control boards. Knowing the parts helps you narrow faults during troubleshooting.
Common JLG battery charger problems
Most problems are simple to spot. Here are common issues I see when doing Jlg Battery Charger Troubleshooting:
- Charger shows no power
- Could be a blown fuse, bad outlet, or loose plug.
- Charger lights blink or show error codes
- That often points to battery faults or charger electronics.
- Batteries do not hold charge
- This may be due to old batteries, sulfation, or poor cell balance.
- Charger overheats or shuts down
- Ventilation or internal failure can cause this.
- Slow charging or low output
- Check wiring, connectors, or degraded charger capacity.
Step-by-step JLG battery charger troubleshooting guide
Follow these steps for safe, clear troubleshooting. Use simple tools like a multimeter and gloves.
- Safety first
- Turn off the charger and disconnect it from AC power.
- Wear eye protection and gloves. Work in a ventilated area.
- Inspect power source
- Try another outlet. Check the extension cord if used.
- Replace blown fuses or reset breakers.
- Check external wiring and connectors
- Look for corrosion, loose clamps, or frayed cables.
- Clean terminals with a brush and a baking soda solution if they are corroded.
- Verify charger indicators
- Read the manual for LED codes. Note which lights are on or blinking.
- Record any error patterns for reference.
- Test charger output
- With the charger on, measure DC volts at the output terminals.
- Compare to the charger’s rated voltage on the label.
- Test battery voltage
- Measure battery voltage before and after charging.
- A healthy battery will show rising voltage during charge.
- Load test batteries
- Use a battery load tester or run the lift under a small load.
- Weak batteries will show big voltage drops under load.
- Isolate the fault
- If the charger outputs correct voltage, the battery or wiring is likely bad.
- If the charger shows no output and power is present, the charger needs repair.

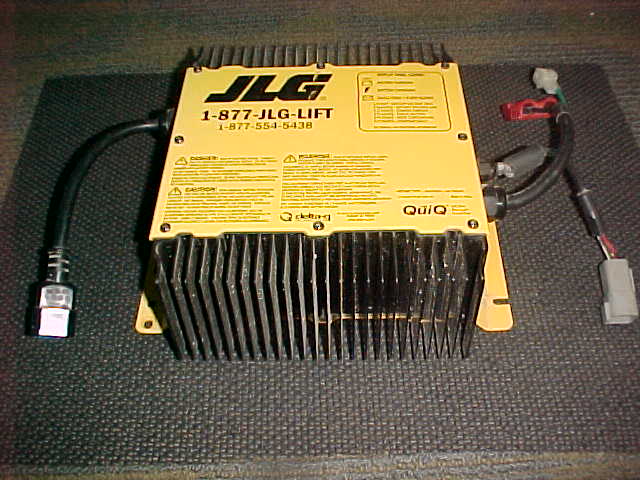

Testing and diagnostic tips for JLG battery charger troubleshooting
Good tests save time and money. Use these checks when you do Jlg Battery Charger Troubleshooting.
- Read the charger label
- Match expected output voltage and amps.
- Use a digital multimeter
– Check AC input, DC output, and battery voltage. - Understand LED codes
- Blinking patterns often map to specific faults in the manual.
- Check battery temperature
- Overheated batteries charge poorly and are a safety risk.
- Try a known-good battery
- Swapping a working battery helps isolate charger faults quickly.
Safety precautions for JLG battery charger troubleshooting
Safety matters more than speed. I have seen accidents from rushed checks. Follow these safety steps.
- Always disconnect AC power before opening equipment.
- Avoid sparks near batteries. Batteries emit hydrogen gas.
- Keep metal tools away from battery terminals.
- Use insulated tools and wear protective gear.
- Follow manufacturer warnings and lockout/tagout if needed.
Maintenance and prevention to avoid JLG battery charger issues
A small routine saves big repair bills. Good maintenance helps avoid most Jlg Battery Charger Troubleshooting calls.
- Keep charger vents clean and dry.
- Inspect cables and clamps monthly.
- Keep battery water levels correct for flooded batteries.
- Equalize cells per battery maker instructions.
- Store chargers and batteries in moderate temperatures.
When to repair vs replace during JLG battery charger troubleshooting
Decide with facts. I weigh cost, downtime, and safety when advising clients.
- Repair if
- The fault is a simple part like a fuse or connector.
- The charger is otherwise recent and supported.
- Replace if
- The control board or transformer has failed.
- The charger is old, parts are costly, or warranty is expired.
- Consider buying a spare charger for busy fleets.
Tools and parts you may need
Being prepared makes troubleshooting faster. Here are the common items I keep in my truck.
- Digital multimeter
- Battery load tester
- Insulated hand tools
- Replacement fuses and terminal clamps
- Contact cleaner and small wire brush
- Personal protective equipment
Real-life example and lessons learned
I once fixed a lift that would not charge. The charger had power but no output. I found a corroded ground lug under the tray. Cleaning and tightening restored charge and saved the company a new charger.
Lessons learned from hands-on Jlg Battery Charger Troubleshooting:
- Start with the simple checks first.
- Clean and tighten connections before blaming electronics.
- Keep a small test battery and meter handy.
- Record error codes and maintenance steps for future use.
Frequently Asked Questions of Jlg Battery Charger Troubleshooting
How do I know if the JLG charger is bad or the battery is bad?
Check the charger output with a multimeter. If the charger gives proper voltage but the battery still shows low voltage or drops under load, the battery is likely bad.
Why does the charger light blink on and off?
Blinking lights usually signal a fault or a protective shutdown. Consult the manual for the specific blink code, and check battery condition and wiring.
Can I charge JLG batteries with a standard automotive charger?
You should match voltage and charging profile to the battery type. Using a mismatched charger can damage batteries and void warranties.
How often should I service JLG chargers and batteries?
Inspect monthly and perform deeper maintenance every three to six months. Follow your fleet schedule and manufacturer recommendations.
What safety steps are critical when troubleshooting a charger?
Disconnect AC power, wear protective gear, and avoid sparks near batteries. Work in a ventilated area and follow lockout/tagout rules if available.
When should I call a technician for Jlg Battery Charger Troubleshooting?
Call a pro if the charger shows internal faults, smells burned, or you lack tools to test safely. Also call if repairs require circuit board or transformer work.
Is it normal for a charger to get warm while charging?
A mild warm feel is normal, but hot to the touch or shutting down from heat is not. Ensure vents are clear and the charger is rated for your environment.
Conclusion
You can handle many Jlg Battery Charger Troubleshooting tasks with basic tools and safe steps. Start with power, connections, and simple tests. Clean contacts and measure voltages. If faults persist, weigh repair versus replacement. Take action now: check your charger and batteries, log any error codes, and subscribe or comment with your questions for more tips.
