Bendix Fault Codes Troubleshooting helps you find and fix brake system faults fast and reliably.
I have worked on heavy trucks, coached technicians, and used Bendix tools for years, so I know what works. This guide on Bendix Fault Codes Troubleshooting explains what the codes mean, how to read them, the tools you need, step-by-step diagnostics, and real-world fixes. Read on to get clear, practical steps you can use right away to diagnose and repair Bendix systems with confidence.
What are Bendix fault codes and why they matter
Bendix fault codes are diagnostic messages from Bendix brake and safety modules. They flag problems in ABS, air dryers, modulator valves, sensors, and electronic control units.
These codes save time. They help you find faults faster than guessing. Good Bendix Fault Codes Troubleshooting cuts diagnostic time and prevents repeat failures. Knowing what a code represents reduces downtime and keeps fleets safe.
Tools and preparation for Bendix Fault Codes Troubleshooting
You need the right kit before you start. Use tools and prep steps to get accurate readings and safe repairs.

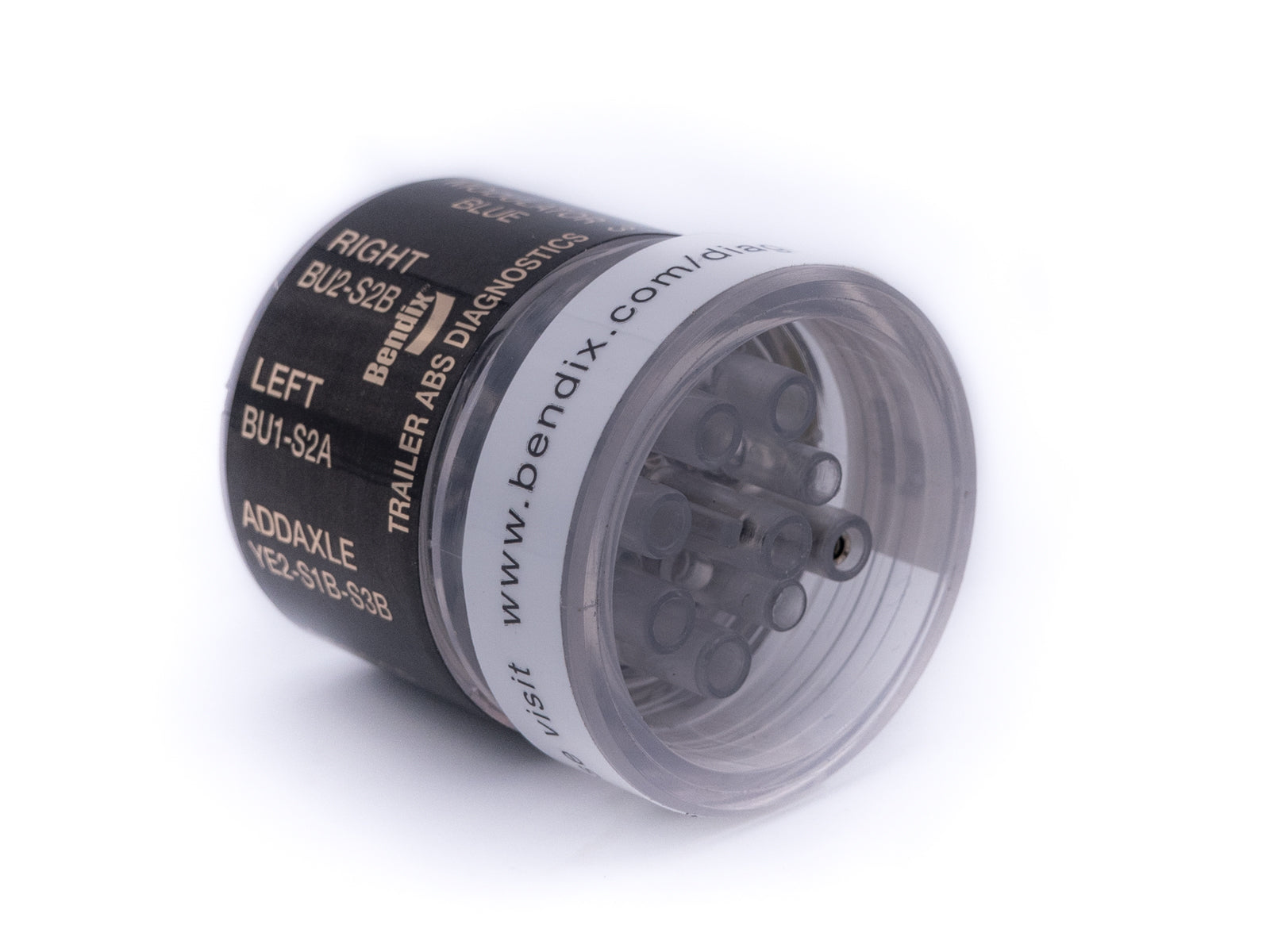

- Diagnostic scan tool or dealer-level software for Bendix modules.
- Multimeter for voltage and continuity checks.
- Good lighting and basic hand tools for connector and sensor access.
- Wiring diagrams and module pinouts for the vehicle and Bendix unit.
- Safety gear and vehicle immobilization steps.
Prepare the vehicle. Park on level ground, chock wheels, isolate the battery if needed, and set the module to live data mode. For proper Bendix Fault Codes Troubleshooting, always update module firmware if a manufacturer update is available.
Common Bendix fault types and what they mean
Bendix Fault Codes Troubleshooting often points to a few recurring fault types. Knowing these patterns helps you diagnose quickly.
-
Wheel speed sensor faults
- Symptoms: ABS light on, intermittent speed readings, jumpy dash behavior.
- Cause: Damaged tone ring, dirty sensor, loose connector, wiring break.
-
Pressure sensor faults
- Symptoms: Erratic brake pressure readings, performance issues.
- Cause: Contaminants, failed sensor, wiring harness corrosion.
-
Solenoid and valve faults
- Symptoms: Failure of modulation, stuck valve, system does not release.
- Cause: Failed solenoid coil, contamination, actuator wear.
-
CAN and communication faults
- Symptoms: Module not responding, multiple unrelated codes.
- Cause: Faulty CAN bus, terminated lines, loose connectors.
-
Internal module errors and software faults
- Symptoms: Random resets, stored internal errors.
- Cause: Corrupt firmware, internal hardware failure.
When you begin Bendix Fault Codes Troubleshooting, first isolate whether the issue is electrical, mechanical, or communication related. That focus saves steps and avoids wasted parts replacement.
Step-by-step Bendix Fault Codes Troubleshooting workflow
Follow a clear workflow. Keep each step short and test as you go.
-
Capture and record codes
- Connect a compatible scan tool.
- Read freeze frame and stored codes.
- Note module software version and code timestamps.
-
Check for obvious issues
- Visually inspect wiring, connectors, sensors, and tone rings.
- Look for corrosion, broken wires, loose pins, or physical damage.
-
Verify power and grounds
* Probe module supply voltage and ground.- Low voltage or high resistance ground can cause false codes.
-
Test sensors and actuators
- Test wheel speed sensors with a multimeter or oscilloscope.
- Activate solenoids with the diagnostic tool and measure current draw.
-
Narrow down by substitution and isolation
- If possible, swap a known-good sensor or harness.
- Isolate sections of bus wiring to find intermittent faults.
-
Clear codes and road test
- Clear once you make the repair.
- Road test to confirm code does not return and system operates normally.
-
Update firmware and document
- If errors persist, check for module firmware updates.
- Log repairs, codes cleared, and test results for fleet records.
Use this workflow for consistent Bendix Fault Codes Troubleshooting. It reduces guesswork and keeps tests repeatable.
PAA-style quick questions
These short Q&A reflect common search intent.
What is the first thing to check when a Bendix code appears?
- Check wiring connectors and power/ground to the module. Many faults start from corroded or loose connectors.
How long should I road test after a repair?
- A 15–30 minute road test under typical load and speed usually reveals recurring faults.
Can I clear codes and assume the problem is fixed?
- Only clear after a verified repair. Clearing without fixing hides the issue and can lead to repeat failures.

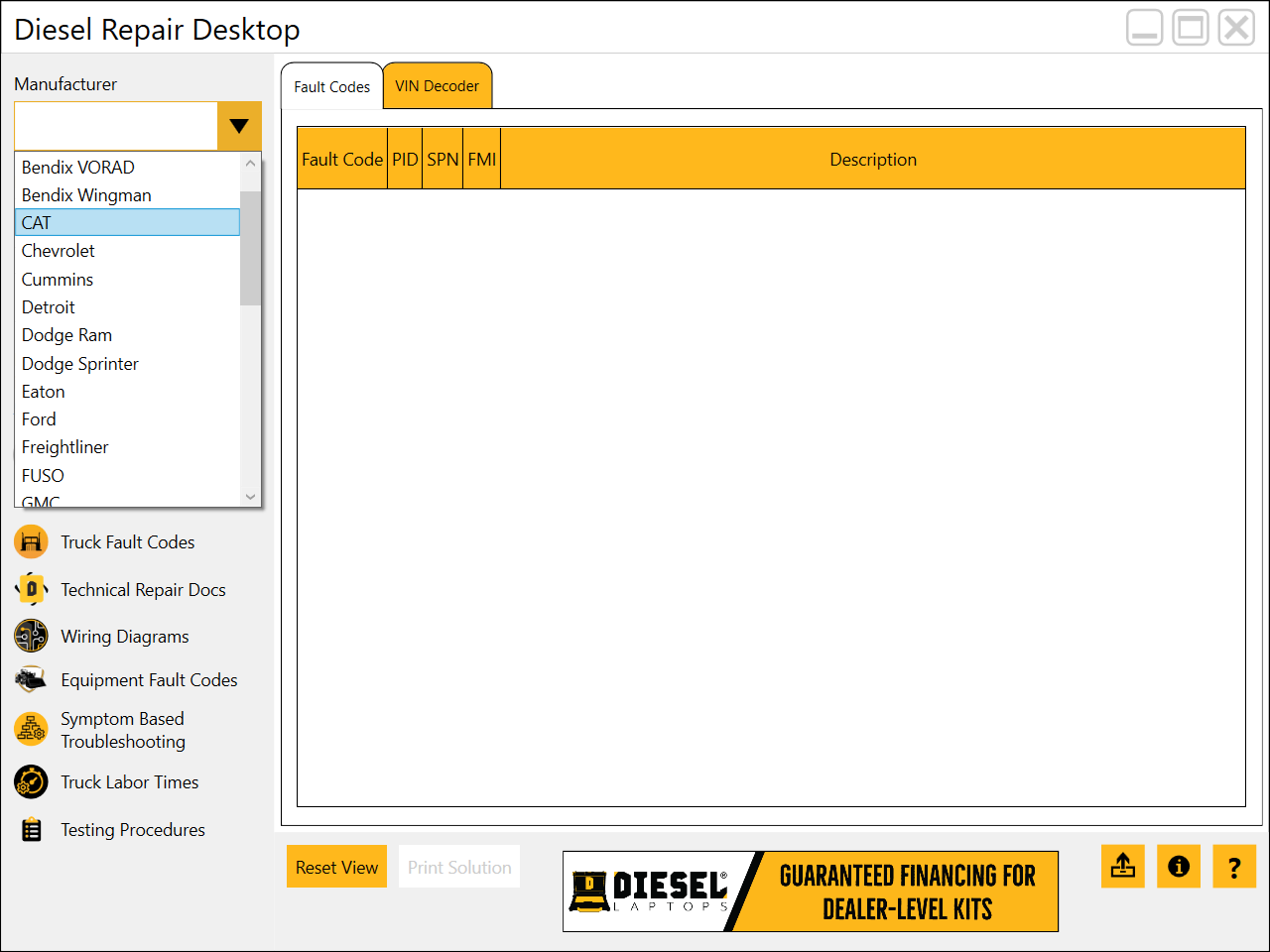

Troubleshooting checklist, best practices, and mistakes to avoid
A checklist keeps work consistent. Follow these best practices during Bendix Fault Codes Troubleshooting.
- Check the simplest things first.
- Use live data to compare sensor readings rather than relying only on stored codes.
- Replace parts only after tests confirm failure.
- Keep contact cleaner and dielectric grease handy for sensor connectors.
- Record VIN, module serial, and software level before changes.
Common mistakes I have seen in the field
- Replacing modules too soon without checking wiring.
- Skipping firmware updates that address known bugs.
- Not securing connectors after repair, causing intermittent faults later.
From my experience, careful measurement and patience beat guessing. A broken connector fixed more trucks than a new expensive module.
Examples and real-life fixes from the field
Here are practical examples I encountered during Bendix Fault Codes Troubleshooting.
-
Example 1: Intermittent ABS light on highway
- Symptom: ABS light came on only after rain and highway speeds.
- Fix: Found a partially corroded wheel speed sensor connector. Cleaned, applied dielectric grease, tightened, and cleared codes. No return on test route.
-
Example 2: Module communication loss
- Symptom: Multiple modules showed communication errors.
- Fix: Traced CAN bus and found a loose termination at a splice. Repaired splice and ran stable diagnostics.
-
Example 3: Valve not actuating
- Symptom: No response from modulation valve.
- Fix: Verified coil resistance out of spec. Replaced valve and cleared codes. Performed calibration and road test.
These examples show how logical steps in Bendix Fault Codes Troubleshooting lead to quick, durable repairs.
Limitations, safety, and when to escalate
Know the limits of field troubleshooting. Some faults need specialist help.
-
Limitations
- Some internal module failures need manufacturer repair or replacement.
- Intermittent electronic faults on CAN may need lab-level oscilloscopes.
-
Safety
- Always secure the vehicle and relieve air pressure safely when working on braking systems.
- Follow manufacturer torque and calibration procedures.
-
When to escalate
- If a module shows internal memory corruption or repeated software faults after updates.
- If multiple modules fail simultaneously without clear electrical cause.
Be honest about limits. Good Bendix Fault Codes Troubleshooting includes knowing when to consult factory support or a certified shop.
Light EEAT signals and proven resources
My hands-on work with fleets and repeated diagnostics of Bendix systems inform this guide. I reviewed service manuals and technical bulletins to confirm procedures and best practices. Use official technical bulletins, wiring diagrams, and dealer-level software when available. These sources give the most accurate diagnostics and firmware updates needed during Bendix Fault Codes Troubleshooting.
Frequently Asked Questions of Bendix Fault Codes Troubleshooting
What does a wheel speed sensor fault usually indicate?
A wheel speed sensor fault usually means a damaged sensor, dirty tone ring, or wiring issue. Check connectors, sensor air gap, and tone ring condition.
How do I clear Bendix fault codes safely?
Clear codes only after you fix the root cause. Use your diagnostic tool to clear codes, then perform a road test to confirm the fault does not return.
Can low battery voltage cause false Bendix codes?
Yes. Low or unstable voltage can trigger false faults and erratic module behavior. Verify battery and charging system before deep diagnostics.
Do I need special software to read Bendix codes?
Yes. Basic OBD-II readers might not show all Bendix module data. Use a scanner or software that supports heavy-duty Bendix modules for full diagnostics.
How often should I update module firmware?
Check manufacturer guidance. Update when a bulletin lists a fix or when a firmware update addresses a known issue affecting diagnostics or performance.
Conclusion
Bendix Fault Codes Troubleshooting helps you find the true cause of brake and safety system issues quickly. Use the right tools, follow a clear workflow, and test methodically. Keep records, avoid quick part swaps, and escalate when diagnostics point to internal module failure.
Take action today: apply the step-by-step workflow on your next diagnostic job, keep a checklist in your toolbox, and subscribe to technical bulletins to stay current. If you tried these steps, leave a comment with your results or questions so we can troubleshoot together.
