A quick fix: Check power, pins, grounds, and communication first. Faulty pins often cause failures.
I have worked with HVAC controls and automotive modules for years. I know 16 Pin Ecm Motor Troubleshooting inside out. This guide walks you through clear steps, real tests, and simple fixes. You will learn how to inspect connectors, measure voltages, read signals, interpret codes, and decide when to repair or replace the module. Follow these practical steps and save time and money when you face 16 Pin Ecm Motor Troubleshooting.
What is a 16 Pin ECM motor and why troubleshooting matters
A 16 Pin ECM motor refers to an electric control module or motor assembly that uses a 16-pin connector. This connector carries power, ground, sensor signals, and communication lines. Many furnaces, HVAC blowers, and vehicle systems use ECM motors with 16-pin plugs.
Why 16 Pin Ecm Motor Troubleshooting matters:
- Prevents no-start conditions and intermittent failures.
- Saves on unnecessary replacement costs.
- Keeps systems efficient and safe.
Understanding pin functions and common failure modes speeds diagnosis. Accurate troubleshooting avoids guesswork and repeated trips. This section sets the stage for step-by-step testing.
Common signs and symptoms of a failing 16 Pin ECM motor
Symptoms point you to the root issue quickly. Typical signs include:
- Motor not running or running intermittently.
- Strange noises or reduced speed.
- Error codes or module lockout.
- Overheating or tripped breakers.
- Poor system performance or irregular fan behavior.
When you see these signs, start 16 Pin Ecm Motor Troubleshooting. Note when the problem started and any recent work. That history often reveals the cause.
Tools and equipment you need
Good tools make troubleshooting fast and safe. Gather:
- Multimeter with DC and AC measurement.
- Test light and a fused jumper.
- Wiring diagrams or pinout chart for the 16-pin connector.
- Insulation probes and needle probes for connectors.
- Basic hand tools: screwdrivers, pliers, and nut drivers.
- Safety gear: gloves and eye protection.
Having the right tools reduces mistakes during 16 Pin Ecm Motor Troubleshooting. I always keep a spare connector kit and a digital scope for tricky signal checks.
Safety first: checklist before starting
Safety is simple but critical. Follow this:
- Turn off power at the breaker before disconnecting the connector.
- Discharge capacitors and wait for components to cool.
- Lock out and tag power if working in an industrial or shared space.
- Use insulated tools and avoid shorting pins together.
A careless probe can destroy an ECM. Safe habits protect you and the electronics during 16 Pin Ecm Motor Troubleshooting.
Step-by-step 16 Pin Ecm Motor Troubleshooting process
Follow these steps in order to isolate the fault.
-
Visual inspection
- Check the 16-pin connector for burns, corrosion, or bent pins.
- Inspect wiring for abrasion, cuts, or rodent damage.
- Look for melted plastic or oil contamination.
-
Power and ground checks
- With power applied, measure supply voltage at the pin for battery or line power.
- Verify solid ground at the ground pin; measure <0.2 ohm if possible.
- Check for fused circuits or blown fuses.
-
Communication and control signals
- Test serial or PWM control pins for proper signals.
- Use a scope or multimeter to see PWM frequency or logic levels.
- Confirm controller is sending speed commands.
-
Motor and sensor tests
- Measure motor windings resistance for opens or shorts.
- Test sensors (temperature, tachometer) that the ECM reads.
- Spin the motor by hand to feel for rough bearings.
-
Load and behavior testing
- Run the motor under commanded conditions and measure current draw.
- Compare current against spec to find binding or overload.
- Note any pattern: starts then trips, or runs only at certain speeds.
-
Bench and module tests
- If available, swap with a known-good module or motor.
- Use a bench supply to feed the module and simulate inputs.
- Observe module LEDs or diagnostic outputs during simulated operation.
Work methodically. Each step narrows the fault. These steps form the backbone of 16 Pin Ecm Motor Troubleshooting.

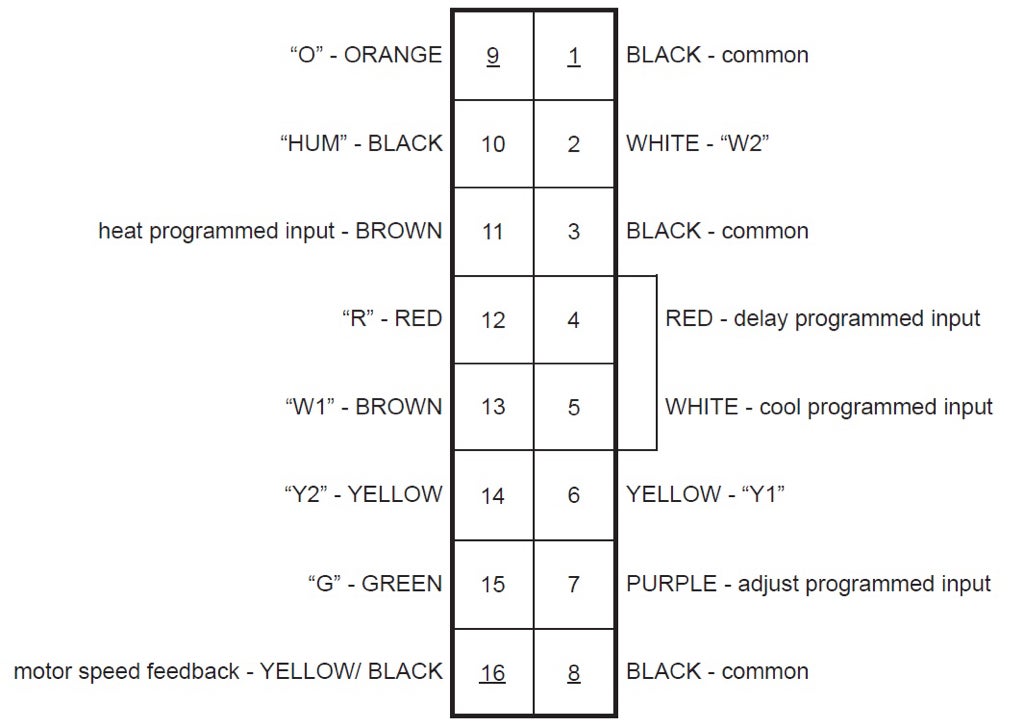

Understanding the 16-pin connector pinout and common pin issues
A pinout map is your map to the module. Typical pin groups include:
- Power and switched power.
- Multiple grounds.
- Speed control or PWM inputs.
- Tachometer or feedback outputs.
- Sensor inputs (thermistors, temperature).
- Communication lines (CAN, LIN, or serial).
Common pin problems:
- Corroded or loose pins cause intermittent faults.
- High resistance ground leads to strange behavior.
- Shorted pins can kill the module or blow fuses.
Always get the exact pinout for your model. Pin names vary across manufacturers. Accurate pin checks speed 16 Pin Ecm Motor Troubleshooting.
Common fault codes and what they mean
ECMs often store codes. Common entries include:
- Overcurrent or stall faults — motor drawing too much current.
- Overtemperature — module senses internal heat.
- Sensor open/short — a sensor reading out of range.
- Communication fault — loss of digital link from the controller.
- EEPROM or internal fault — module logic error.
Read codes with the proper tool. Resetting without fixing the cause only delays failure. Use codes as clues during 16 Pin Ecm Motor Troubleshooting.
Wiring harness and connector repair tips
Small connector fixes save big money. Steps I use:
- Clean contacts with contact cleaner and a small brush.
- Replace pins that are corroded or loose using a pin kit.
- Repair wiring with solder and heat-shrink for long-lasting joints.
- Use dielectric grease to prevent future corrosion.
Keep a spare 16-pin housing in your kit. A clean, tight connector solves many intermittent faults in 16 Pin Ecm Motor Troubleshooting.
When to repair the ECM versus replace it
Decide with these points in mind:
- Repair if the issue is connector damage, blown fuse, or sensor failure.
- Replace if the module has internal shorts, burned components, or unreliable EEPROM.
- Consider cost and downtime. A used, tested ECM can be a budget choice.
- Factor in manufacturer codes or warranties for safety-critical systems.
I once repaired a module by replacing a burned MOSFET and saved the client a full replacement cost. That saved money and restored reliability quickly. Use careful tests to guide your choice in 16 Pin Ecm Motor Troubleshooting.
Preventive maintenance to avoid future ECM failures
Prevention is simple and effective. Do this:
- Keep connectors clean and dry; use seals where moisture is present.
- Check wiring annually for wear and rodent damage.
- Replace air filters and maintain system airflow to prevent motor overload.
- Monitor current and temperature trends for early signs.
A small yearly check reduces the need for intense 16 Pin Ecm Motor Troubleshooting later.
Personal experience, lessons learned, and practical tips
From my field work, I learned:
- Start with power and ground. Most issues trace there.
- Take photos before disconnecting the 16-pin plug. Photos save time reassembling.
- Keep a log of intermittent faults; they often follow patterns.
- Be cautious when swapping modules. Confirm compatibility.
One job taught me to always test under load. A motor that spun free on a bench still failed under real airflow. That lesson matters when doing 16 Pin Ecm Motor Troubleshooting.
Troubleshooting quick checklist (compact)
Use this as a pocket guide:
- Visual: pins, wiring, burn marks.
- Power: measure supply voltage and fuses.
- Ground: low resistance and solid connection.
- Signals: PWM, tach, and comm lines.
- Load: current draw and motor behavior.
- Swap: compare with known-good parts if possible.
Keep this checklist handy during 16 Pin Ecm Motor Troubleshooting.
PAA-style questions you may search for
How do I test a 16 pin ECM connector?
- Check power pins with a multimeter, verify grounds, and probe control pins for expected signals.
What causes ECM motor intermittent faults?
- Loose pins, corroded contacts, or intermittent ground connections often cause dropouts and strange behavior.
Can I repair a burnt ECM pin?
- Yes. Often you can replace the pin, clean the contact, and secure the housing. Replace the housing if plastic is melted.
Is it safe to run the motor with a suspected ECM fault?
- No. Running can cause more damage. Test on a bench and confirm safe conditions before operating.
How long should a typical ECM last?
- Many last 5–15 years. Longevity depends on environment, load, and maintenance.
Frequently Asked Questions of 16 Pin Ecm Motor Troubleshooting
What is the first step in 16 Pin Ecm Motor Troubleshooting?
Start with a visual inspection of the 16-pin connector, wiring, and fuses. Then verify supply voltage and grounds with a multimeter.
How do I find the pinout for my 16-pin ECM?
Refer to the equipment service manual or wiring diagram. If not available, label pins before disconnecting and trace wires to their sources.
Can a bad ground cause ECM motor failure?
Yes. High resistance or intermittent grounds create odd faults and can prevent the module from running correctly.
How do I know if the ECM or motor is bad?
Measure motor winding resistance and run current tests. If wiring and power are good and the motor still fails, the ECM is the likely culprit.
Is it safe to replace only the connector pins?
Yes, if pins are the only damaged part. Use the correct pin kit and ensure secure crimps or soldered joints for reliability.
How often should I inspect the 16-pin connector?
Inspect at least once a year and after any flooding, pest issues, or system repairs. Frequent checks prevent surprises.
What tool reveals PWM speed signals best?
An oscilloscope shows PWM shape and duty cycle clearly. A multimeter can show average voltage but not waveform details.
Conclusion
You now have a clear path for 16 Pin Ecm Motor Troubleshooting. Start with simple checks: visual inspection, power, and ground. Move on to signals, load, and bench testing. Use the checklist and pinout knowledge to diagnose fast. With steady method and the right tools you can fix most issues and avoid costly replacements. Try these steps on your system, keep notes, and share results or questions below. If you found this useful, subscribe or comment to get more troubleshooting guides and practical tips.
